ソーラー用リレー

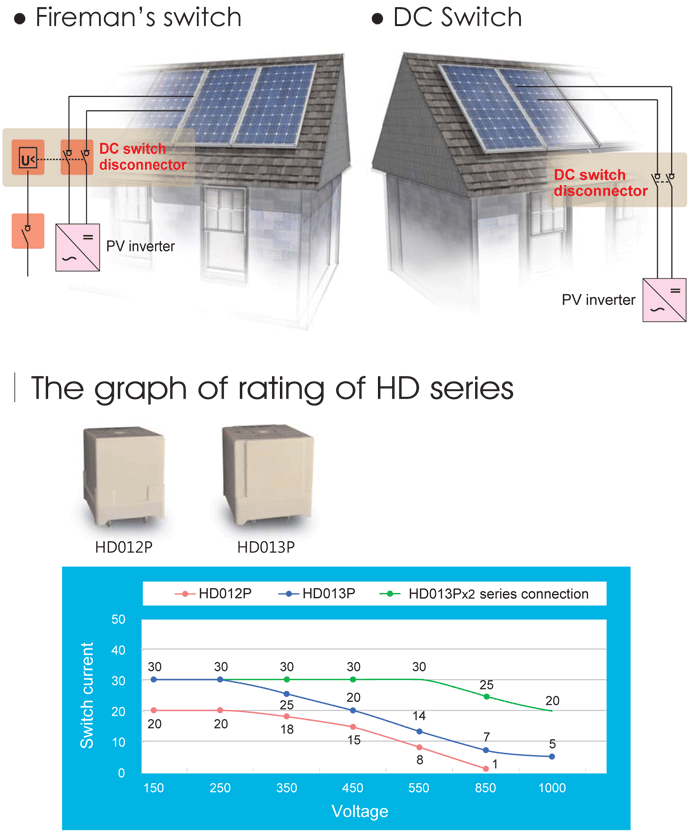

Relay for DC switch

HD Series

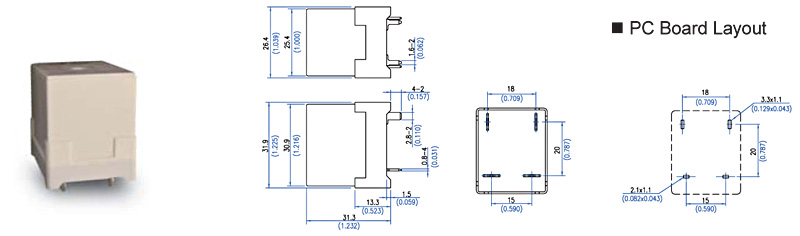

HD012P Series

Description
Contact Rating (Resistive load)20A 400VDC
Coil voltage12VDC
Power consumptionApprox. 1.25W
Contact materialAg alloy
Contact voltage drop (1)Typ. 40mV at 10A
Operate time (1)30ms Max.
Release time (1)15ms Max.
Insulation resistance (1)100MΩ Min. (DC 500V)
Dielectric strength (1)Between open contact : AC 2500V, 50/60Hz 1 min.
Between contact and coil : AC 2500V, 50/60Hz 1 min.
Operating ambient temperature-40～+85°C (no freezing)
WeightApprox. 65 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

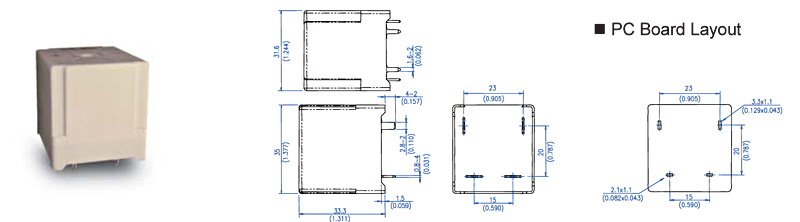

HD013P Series

Description
Contact Rating (Resistive load)30A 400VDC
Coil voltage12VDC
Power consumptionApprox. 1.25W
Contact materialAg alloy
Contact voltage drop (1)Typ. 40mV at 10A
Operate time (1)30ms Max.
Release time (1)15ms Max.
Insulation resistance (1)100MΩ Min. (DC 500V)
Dielectric strength (1)Between open contact : AC 2500V, 50/60Hz 1 min.
Between contact and coil : AC 2500V, 50/60Hz 1 min.
Operating ambient temperature-40～+85°C (no freezing)
WeightApprox. 70 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

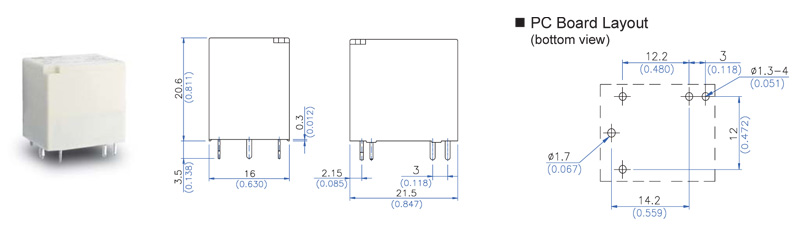

MV001H Series

Features
  • High duty sugar cube relay with 8A 60VDC.
  • Contact gap can be greater than 1.8mm.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter), motor control, compressor control, home appliances.
  • Also for micro inverter application.
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load)15A 48VDC
Coil voltage12～48VDC
Power consumptionApprox. 2W
Contact materialAg alloy
Contact gap2.1mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)20ms Max.
Release time (1)20ms Max.
Insulation resistance (1)20MΩ Min. (DC 500V)
Dielectric strength (1)Between open contact : AC 750V, 50/60Hz 1 min.
Between contact and coil : AC 750V, 50/60Hz 1 min.
Life expectancy Mechanical : 500,000 ops. (frequency 9,000 operations/hr)
Electrical : 30,000 ops. (frequency 900 operations/hr)
Operating ambient temperature-40～+75°C (no freezing)
WeightApprox. 15 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

Relay for AC switch

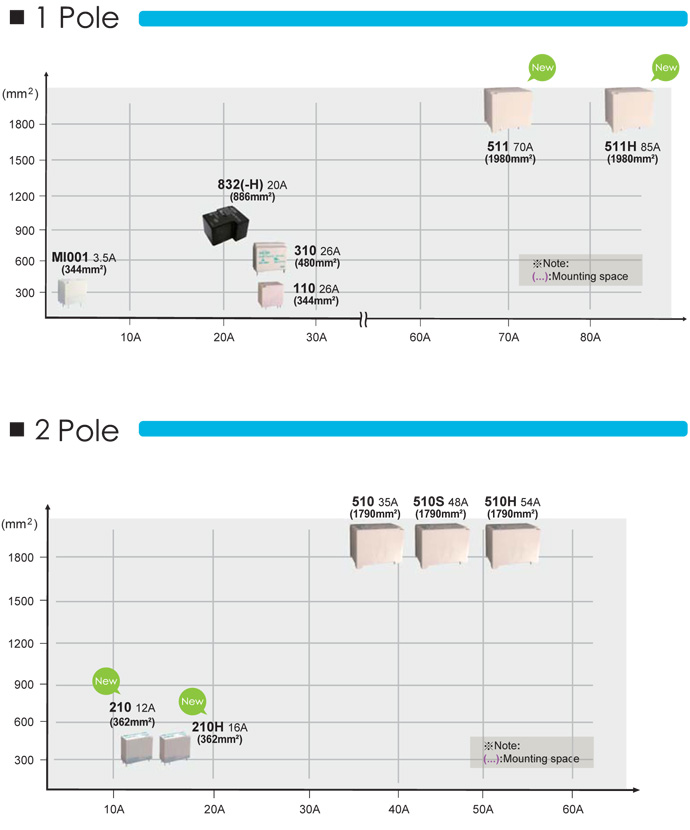

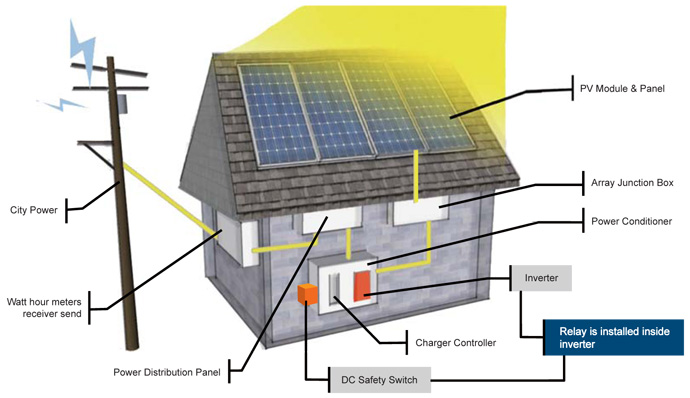

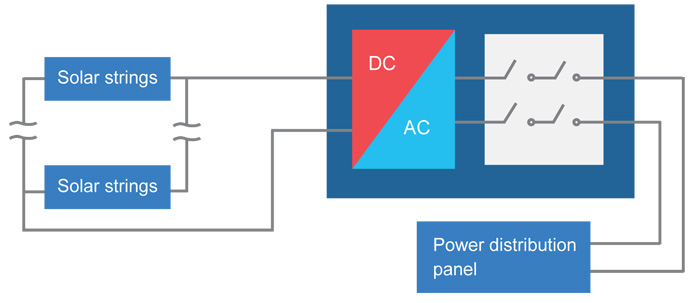

Photovoltaic inverter system

Relay for A C Switch

Photovoltaic standard

MI001 Series

Features

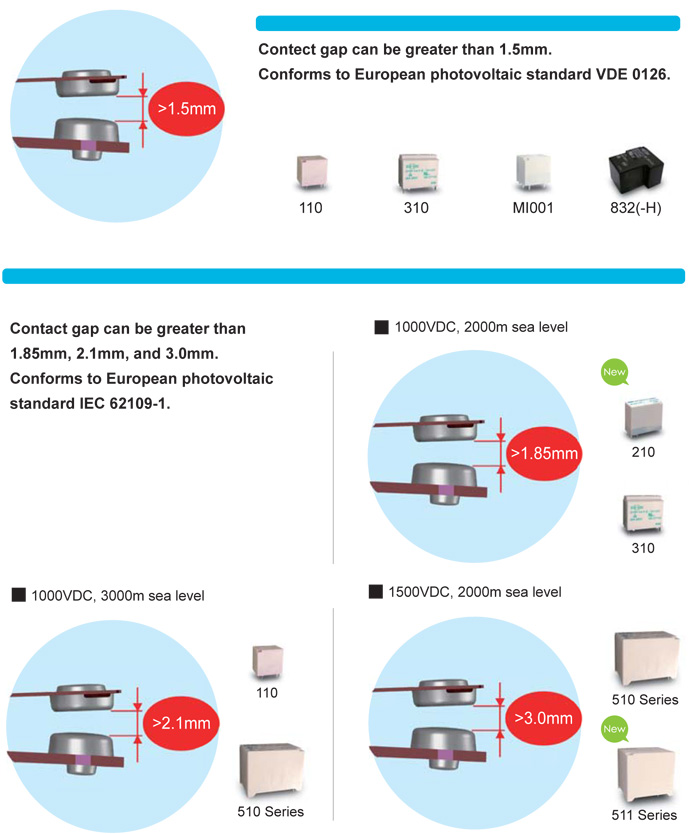

  • Contact gap can be greater than 1.5mm.
  • Conforms to European photovoltaic standard VDE 0126.
  • Coil holding voltage can be reduced to 50%V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter).
  • Also for micro inverter application.
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load)3.5A 240VAC T100 ; ON 1s /OFF 9s ; 30,000 ops.
Coil voltage12～48VDC
Power consumptionAt rated voltage : Approx. 1.4W
At holding voltage : Approx. 0.35W
Contact materialAg alloy
Contact gap1.5mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)15ms Max.
Release time (1)10ms Max.
Insulation resistance (1)100MΩ Min. (DC 500V)
Dielectric strength (1)Between open contact : AC 1000V, 50/60Hz 1 min.
Between contact and coil : AC 2500V, 50/60Hz 1 min.
Life expectancy (Mechanical)500,000 ops. (frequency 12,000 operations/hr)
Operating ambient temperature-40～+100°C (no freezing)
WeightApprox. 15 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

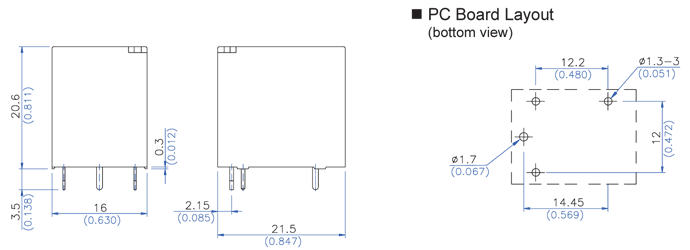

Outline Dimensions

210 Series

Features
  • 12A miniature PCB Power Relay.
  • Contact gap can be greater than 1.85mm.
  • Conforms to European photovoltaic standard IEC 62109-1.
  • Coil holding can be reduced to 45~60% V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter).
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load)12A 250VAC T85 ; ON 1s /OFF 9s ; 30,000 ops.
12A 250VAC cosψ0.8 T85 ; ON 0.1s /OFF 10s ; 30,000 ops.
Coil voltage12～48VDC
Power consumptionAt rated voltage : Approx. 1.4W
At holding voltage : Approx. 0.29W
Contact materialAgSnO alloy
Contact gap1.85mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)20ms Max.
Release time (1)15ms Max.
Insulation resistance (1)1000MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 1500V, 50/60Hz 1 min.
Between contact and coil : AC 5000V, 50/60Hz 1 min.
Between contact circuits : AC 2500V, 50/60Hz 1 min.
Life expectancy (Mechanical)100,000 ops. (frequency 9,000 operations/hr)
Operating ambient temperature-40～+85°C (no freezing)
WeightApprox. 17 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

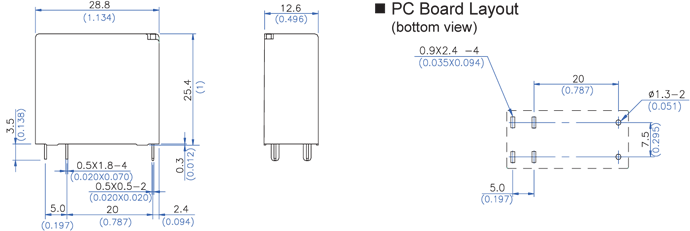

Outline Dimensions

210H Series

Features
  • 14A/16A miniature PCB Power Relay.
  • Contact gap can be greater than 1.85mm.
  • Conforms to European photovoltaic standard IEC 62109-1.
  • Coil holding can be reduced to 45~55% V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter).
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load)14A 250VAC T85 ; ON 1s /OFF 9s ; 30,000 ops.
16A 250VAC T75 ; ON 1s /OFF 9s ; 30,000 ops.
Contact Rating (Inductive load) 14A 250VAC cosφ0.8 T85 ; ON 0.1s /OFF 10s ; 30,000 ops.
16A 250VAC cosφ0.8 T75 ; ON 0.1s /OFF 10s ; 30,000 ops.
Coil voltage12～48VDC
Power consumptionAt rated voltage : Approx. 1.4W
At holding voltage : Approx. 0.29W
Contact materialAgSnO alloy
Contact gap1.85mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)20ms Max.
Release time (1)15ms Max.
Insulation resistance (1)1000MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 1500V, 50/60Hz 1 min.
Between contact and coil : AC 5000V, 50/60Hz 1 min.
Between contact circuits : AC 2500V, 50/60Hz 1 min.
Life expectancy (Mechanical)100,000 ops. (frequency 9,000 operations/hr)
Operating ambient temperature
(no freezing)		-40～+85°C for contact rating 14A
-40～+75°C for contact rating 16A
WeightApprox. 17 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

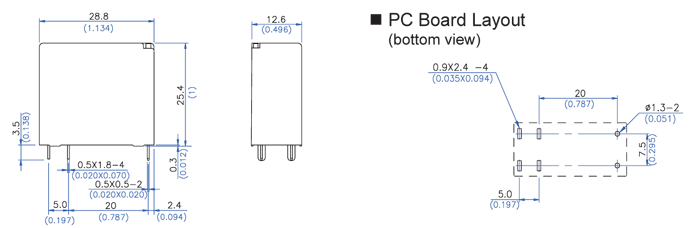

Outline Dimensions

832A(-h) Series

Features
  • High duty sugar cube relay with 20A 240VAC.
  • Contact gap can be greater than 1.9mm.
  • Conforms to European photovoltaic standard VDE 0126.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter), HVAC,UPS & power supply, home appliances.
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load)20A 240VAC
Coil voltage6～48VDC
Power consumptionApprox. 1.1W
Contact materialAgSnO / AgNi alloy
Contact gap1.9mm Min.
Contact resistance (1)50mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)20ms Max.
Release time (1)5ms Max.
Insulation resistance (1)100MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 1500V, 50/60Hz 1 min.
Between contact and coil : AC 4000V, 50/60Hz 1 min.
Life expectancy Mechanical : 5,000,000 ops. (frequency 18,000 operations/hr)
Electrical : 20,000 ops. for 20A/240VAC ; 100,000 ops. for 10A/240VAC (frequency 900 operations/hr)
Operating ambient temperature-55～+85°C (no freezing)
WeightApprox. 27 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

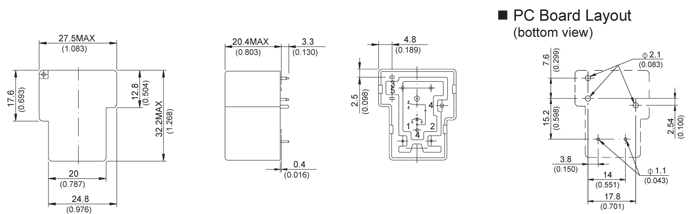

Outline Dimensions

110 Series

Features
  • High duty sugar cube relay with 26A 277VAC.
  • Contact gap can be greater than 1.5mm & 2.1mm.
  • Conforms to European photovoltaic standard IEC 62109-1.
  • Coil holding voltage can be reduced to 55%V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter), motor control, compressor control, home appliances.
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating
(Resistive load)		Standard type 26A 240VAC T75 ; ON 1s /OFF 9s ; 30,000 ops.
22A 240VAC T85 ; ON 1s /OFF 9s ; 30,000 ops.
High power type26A 240VAC T85 ; ON 1s /OFF 9s ; 30,000 ops.
Contact Rating
(Inductive load)		Standard type 26A 240VAC T85 AC-7a, cosΦ0.8 ; ON 0.1s / OFF 10s ; 30,000 ops.
High power type26A 240VAC T85 AC-7a, cosΦ0.8 ; ON 0.1s / OFF 10s ; 30,000 ops.
Coil voltage12～48VDC
Power consumptionAt rated voltage : Approx. 1.67W
At holding voltage : Approx. 0.5W
Contact materialAgSnO alloy
Contact gap1.5mm Min. / 2.1mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)15ms Max.
Release time (1)10ms Max.
Insulation resistance (1)100MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 1000V, 50/60Hz 1 min.
Between contact and coil : AC 2500V, 50/60Hz 1 min.
Life expectancy
(Mechanical)		 500,000 ops. (frequency 9,000 operations/hr)
Operating ambient temperature-40～+85°C (no freezing)
WeightApprox. 15 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

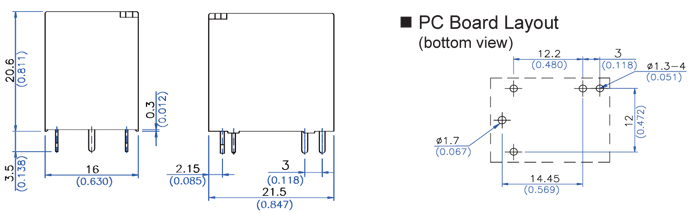

Outline Dimensions

310 Series

Features
  • High duty relay with 26A 277VAC.
  • Contact gap can be greater than 1.5mm & 1.85 mm.
  • Conforms to European photovoltaic standard IEC 62109-1.
  • Coil holding voltage can be reduced to 50~55% V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter).
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load)26A 240VAC T85 ; ON 1s /OFF 9s ; 30,000 ops.
Coil voltage12～48VDC
Power consumptionAt rated voltage : Approx. 1.5W
At holding voltage : Approx. 0.45W
Contact materialAg alloy
Contact gap1.5mm Min. / 1.85mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)20ms Max.
Release time (1)10ms Max.
Insulation resistance (1)1000MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 2000V, 50/60Hz 1 min.
Between contact and coil : AC 4500V, 50/60Hz 1 min.
Life expectancy
(Mechanical)		 1,000,000 ops. (frequency 18,000 operations/hr)
Operating ambient temperature-40～+85℃ (no freezing)
WeightApprox. 22 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

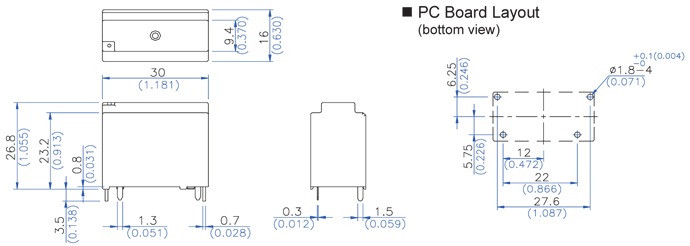

Outline Dimensions

510 Series

Features
  • Heavy duty 32~60A 277VAC power type.
  • DPDM contact configuration with large contact gap 2.1mm & 3.0mm version.
  • Conforms to European photovoltaic standard IEC 62109-1.
  • Coil holding voltage can be reduced to 50~55%V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter).
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load) 510　: 35A 240VAC T85 ; ON 1s /OFF 9s ; 20,000 ops.
510S : 48A 240VAC T85 ; ON 1s /OFF 9s ; 10,000 ops.
510H : 54A 240VAC T85 ; ON 1s /OFF 9s ; 10,000 ops.
Coil voltage12～48VDC
Power consumption At rated voltage : Approx. 2.4W (for 510, 510S) ; 5.4W (for 510H)
At holding voltage : Approx. 0.6W (for 510, 510S) ; 1.35W (for 510H)
Contact materialAg alloy
Contact gap2.1mm Min. / 3.0mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)30ms Max.
Release time (1)30ms Max.
Insulation resistance (1)1000MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 2000V, 50/60Hz 1 min.
Between contact and coil : AC 4000V, 50/60Hz 1 min.
Between contact circuits : AC 2000V, 50/60Hz 1 min.
Life expectancy
(Mechanical)		 1,000,000 ops. (frequency 18,000 operations/hr)
Operating ambient temperature-40～+85℃ (no freezing)
WeightApprox. 90 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

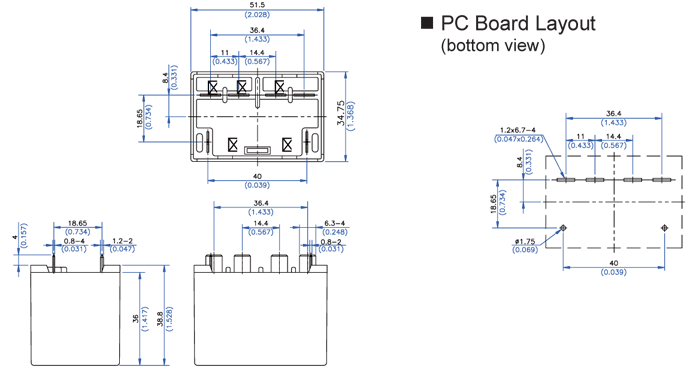

Outline Dimensions

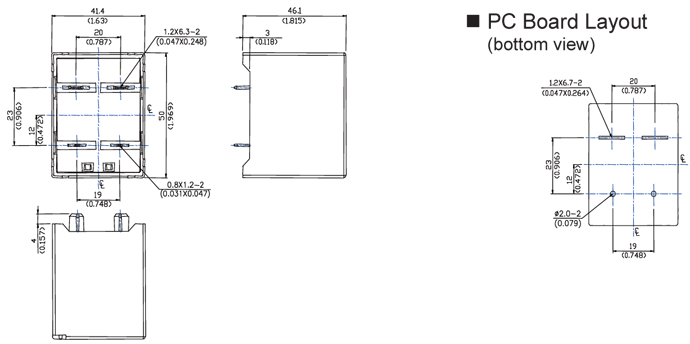

511 Series

Features
  • Heavy duty 70/85A 277VAC power type.
  • SPDM contact configuration with large contact gap 3.0mm version.
  • Conforms to European photovoltaic standard IEC 62109-1.
  • Coil holding voltage can be reduced to 50~55%V of the nominal coil voltage for saving energy.
  • High performance PCB power relay for photovoltaic power generation systems (solar inverter).
  • Complies with RoHS-Directive 2011/65/EU.
Description
Contact Rating (Resistive load) 511 : 70A 240VAC T85 ; ON 1s /OFF 9s ; 10,000 ops.
511H : 85A 240VAC T85 ; ON 1s /OFF 9s ; 10,000 ops.
Coil voltage12～48VDC
Power consumption At rated voltage : Approx. 3.2W
At holding voltage : Approx. 0.97W
Contact materialAg alloy
Contact gap3.0mm Min.
Contact resistance (1)100mΩ Max. (1A/6VDC by 4 pipes mΩ meter)
Operate time (1)30ms Max.
Release time (1)30ms Max.
Insulation resistance (1)1000MΩ Min. (DC 500V)
Dielectric strength (1) Between open contact : AC 2000V, 50/60Hz 1 min.
Between contact and coil : AC 4000V, 50/60Hz 1 min.
Life expectancy
(Mechanical)		 1,000,000 ops. (frequency 18,000 operations/hr)
Operating ambient temperature-40～+85℃ (no freezing)
WeightApprox. 170 g

*Note：(1) Initial value. Operate and release time excluding contact bounce.

Outline Dimensions

↑ PAGE TOP
