Series Number: 102

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	14x13x9.5	Contact Configuration	1 FORM C
Max.Allowable Contact current	20A	Contact Rating Resistive load	NO:20A/14VDC NC:10A/14VDC
Insulation System	UL Class F	Coil Voltage	DC: 6-24VDC AC: None
Power consumpition	DC: 0.64W AC: None	Expected mechanical life (min.)	1X10^77
Expected electrical life (min.)	1X10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 103

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	14x7.2x13.5	Contact Configuration	1A,1C
Max.Allowable Contact current	20A	Contact Rating Resistive load	NO: 20A 14VDC NC: 10A 14VDC
Insulation System	None	Coil Voltage	DC: 6-24V AC: None
Power consumpition	DC: 0.64W AC: None	Expected mechanical life (min.)	1x10^77
Expected electrical life (min.)	1x10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500VAC	Between contact and coil	500VAC
Between contact circuits

Series Number: 301

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	22.5x15x25.0	Contact Configuration	1 FORM C
Max.Allowable Contact current	25A	Contact Rating Resistive load	1A:35A/14VDC 1C:NO 35A/NC 20A 14VDC
Insulation System	Standard	Coil Voltage	DC: 6-24VDC AC: None
Power consumpition	DC: 1.2W AC: None	Expected mechanical life (min.)	1x10^77
Expected electrical life (min.)	1x10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 303

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	16X15.2×23.7	Contact Configuration	1 FORM A
Max.Allowable Contact current	20A	Contact Rating Resistive load	20A 14VDC
Insulation System		Coil Voltage	DC: 12 AC:
Power consumpition	DC: 1.2W AC: None	Expected mechanical life (min.)	1X10^77
Expected electrical life (min.)	1X10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 804

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	27.7x23x29.3	Contact Configuration	1A
Max.Allowable Contact current	30 amps	Contact Rating Resistive load	30A 12VDC 15A 24VDC
Insulation System	50MΩ Min.(DC500V)	Coil Voltage	DC: 12・24V AC: None
Power consumpition	DC: 1.4W AC: None	Expected mechanical life (min.)	5 x 10^66
Expected electrical life (min.)	1 x 10^55	Terminal type	Socket Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	AC500V,50/60Hz 1min.	Between contact and coil	AC500V,50/60Hz 1min.
Between contact circuits	None

Series Number: 812HM

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	21X16X16.3	Contact Configuration	1 FORM A TO 1 FORM C
Max.Allowable Contact current	15 amps	Contact Rating Resistive load	15A 14VDC
Insulation System	None	Coil Voltage	DC: 9-24VDC AC: None
Power consumpition	DC: 0.64W AC: None	Expected mechanical life (min.)	1 X 10 7 ^7
Expected electrical life (min.)	1 X 10 5 ^5	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits	None

Series Number: 822

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	26.6X21.4X21.5	Contact Configuration	1 FORM A TO 1 FORM C
Max.Allowable Contact current	40 amps	Contact Rating Resistive load	1A:40A 14VDC (SPNO ONLY) 1B:30A 14VDC (SPNC ONLY) 1C:NO 40A/NC: 20A 14VDC
Insulation System	None	Coil Voltage	DC: 6-24VDC AC: None
Power consumpition	DC: 1.2/1.6W AC: None	Expected mechanical life (min.)	1 X 10 7 ^7
Expected electrical life (min.)	1 X 10 5 ^5	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits	None

Series Number: 832AM

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	32.2x27.5x20.4	Contact Configuration	1 FORM A TO 1 FORM C
Max.Allowable Contact current	30 amps	Contact Rating Resistive load	1A:30A 14VDC 1C:NO 20A/NC 10A 14VDC
Insulation System	UL Class F Optional	Coil Voltage	DC: 3-110VDC AC: None
Power consumpition	DC: 0.93W AC: None	Expected mechanical life (min.)	1 x 10 7 ^7
Expected electrical life (min.)	1 x 10 5 ^5	Terminal type	PCB Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	1500V	Between contact and coil	1500V
Between contact circuits	None

Series Number: 833HM

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	19X15.5X15	Contact Configuration	1 FORM A TO 1 FORM C
Max.Allowable Contact current	10 amps	Contact Rating Resistive load	15A 14VDC
Insulation System	None	Coil Voltage	DC: 9-24VDC AC: None
Power consumpition	DC: 0.64W AC: None	Expected mechanical life (min.)	1 X 10 7 ^7
Expected electrical life (min.)	1 X 10 5 ^5	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	750V	Between contact and coil	1500V
Between contact circuits	None

Series Number: 842

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	15.7X10.9X12.0	Contact Configuration	1 FORM A TO 1 FORM C
Max.Allowable Contact current	3 amps	Contact Rating Resistive load	3A 120VAC/28VDC
Insulation System	None	Coil Voltage	DC: 3-24VDC AC: None
Power consumpition	DC: 0.2W AC: None	Expected mechanical life (min.)	1 X 10 7 ^7
Expected electrical life (min.)	1 X 10 5 ^5	Terminal type	PCB Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	1000V
Between contact circuits	None

Series Number: 861

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	17.5x15x19.5	Contact Configuration	1 FORM A, B, & C
Max.Allowable Contact current	12 amps	Contact Rating Resistive load	15A 14VDC SPDM:10Ax2 14VDC
Insulation System	None	Coil Voltage	DC: 6-24VDC AC: None
Power consumpition	DC: 1.1W AC: None	Expected mechanical life (min.)	1 x 10 7 ^7
Expected electrical life (min.)	1 x 10 5 ^5	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits	None

Series Number: 871

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	23x15.5x25.4	Contact Configuration	1 FORM A, C
Max.Allowable Contact current	35 AMPS	Contact Rating Resistive load	1A:35A 19VDC 1C:NO 35A /NC20A 14VDC
Insulation System	None	Coil Voltage	DC: 6-24VDC AC: NONE
Power consumpition	DC: 1.2W AC: NONE	Expected mechanical life (min.)	1 X 10 7 ^7
Expected electrical life (min.)	1 X 10 5 ^5	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 895

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	15.5x12x13.8	Contact Configuration	1A, 1C, 2A
Max.Allowable Contact current	1A-20A, 1C-10A, 2A-10A	Contact Rating Resistive load	NO:20A 14VDC NC:10A 14VDC
Insulation System	None	Coil Voltage	DC: 9VDC-12VDC AC: None
Power consumpition	DC: 0.64/1.0/0.8w AC: None	Expected mechanical life (min.)	1X10^77
Expected electrical life (min.)	1X10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 896

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	25.8x25.8x25	Contact Configuration	1 FORM C TO 2 FORM A
Max.Allowable Contact current	50A	Contact Rating Resistive load	50A/14VDC
Insulation System	None	Coil Voltage	DC: 12-24VDC AC: None
Power consumpition	DC: 1.6W AC: None	Expected mechanical life (min.)	1X10^77
Expected electrical life (min.)	1X10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 897

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	25.8x25.8x25	Contact Configuration	1 FORM A
Max.Allowable Contact current	70A	Contact Rating Resistive load	70A/14VDC
Insulation System	None	Coil Voltage	DC: 12-24VDC AC: None
Power consumpition	DC: 1.6W AC: None	Expected mechanical life (min.)	1x10^77
Expected electrical life (min.)	1x10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

Series Number: 898

DESCRIPTION	DETAILS	DESCRIPTION	DETAILS
Size(LxWxH) not including terminals	25.8x25.8x25	Contact Configuration	1 FORM A
Max.Allowable Contact current	50A	Contact Rating Resistive load	50A/12VDC(898H) 40A/14VDC
Insulation System	Standard	Coil Voltage	DC: 12-24VDC AC: None
Power consumpition	DC: 1.6W AC: None	Expected mechanical life (min.)	1x10^77
Expected electrical life (min.)	1x10^55	Terminal type	Auto Relays
Dielectric Strength AC Voltage- 1 minute
Between open contact	500V	Between contact and coil	500V
Between contact circuits

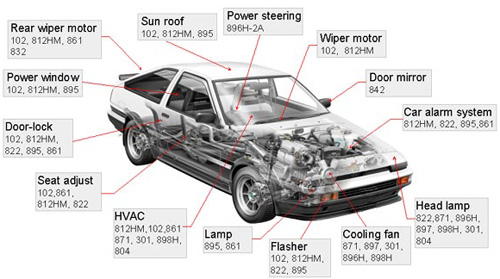

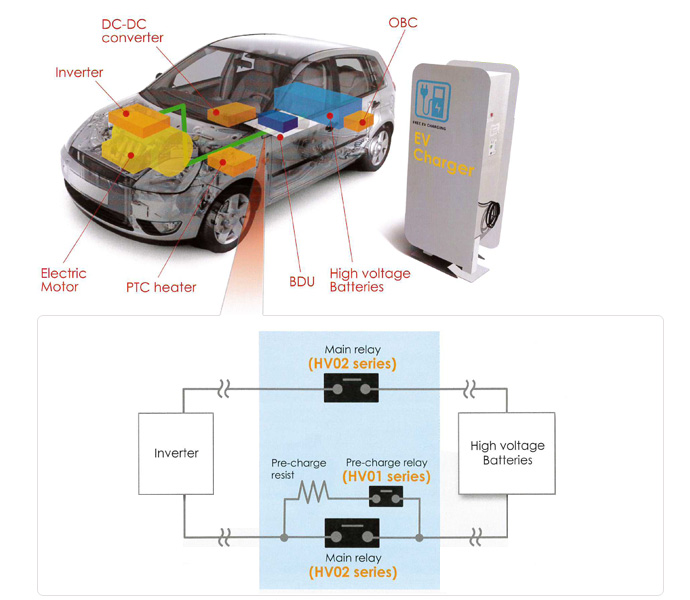

EV System Configuration & Relay Application

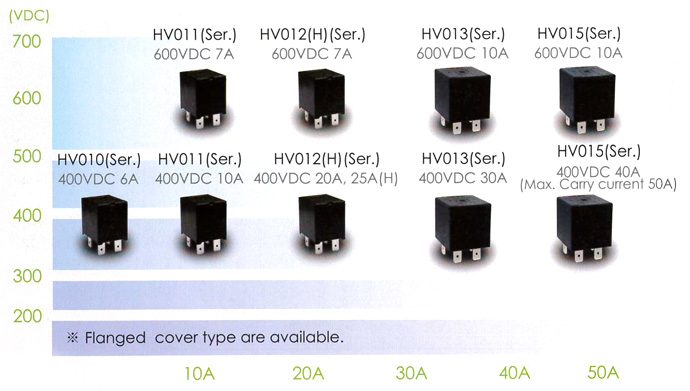

HV01 Series

DESCRIPTION
Relay type		HV010	HV011	HV012(H)	HV013	HV015
Contact configuration		1A
Nominal switching capacity (resistive load)		6A 400VDC	10A 400VDC	20A 400VDC 25A 400VDC(H)	30A 400VDC	40A 400VDC
Rated voltage		12VDC
Pick up voltage (Max.)		9.0V
Drop out voltage (Min.)		0.6V
Power consumption		1.25W				1.8W
Contact voltage drop ⁽¹⁾		Typ. 40mV at 10A
Breakdown voltage ⁽¹⁾		Between open contact : AC 2000V / 1 min. Between contact and coil : AC 2500V / 1 min.
Insulation resistance ⁽¹⁾		100MΩ Min.(DC500V)
Operate time ⁽¹⁾		30ms Max.
Release time ⁽¹⁾		15ms Max.
Life expectancy	Mechanical (Min.)	500,000 ops.
Life expectancy	Electrical (Min.)	100,000 ops. ⁽²⁾	100,000 ops. ⁽²⁾	5,000 ops. 1,000 ops. (H)	10,000 ops	5,000 ops.
Ambient temperature		-40 ～ 85℃(no freezing)
Weight		Approx. 65g,70g(flanged cover)
Terminal connection		Quick terminal ; Plug-in terminal ; PCB terminal

※ Note:(1) Initial value. Operate and release time excluding contact bounce.
　　　　(2) Pre-charging simulation circuit.
　　　　(3) Load sides with polarities (+) and (-).
　　　　(4) To use a varistor could absorb the coil surge of relay. The life expectancy will be lower
　　　　　　when a diode is used.
　　　　(5) Consider the heat of PCB is necessary with actual application.
　　　　(6) Please contact Song Chuan for the detailed information.

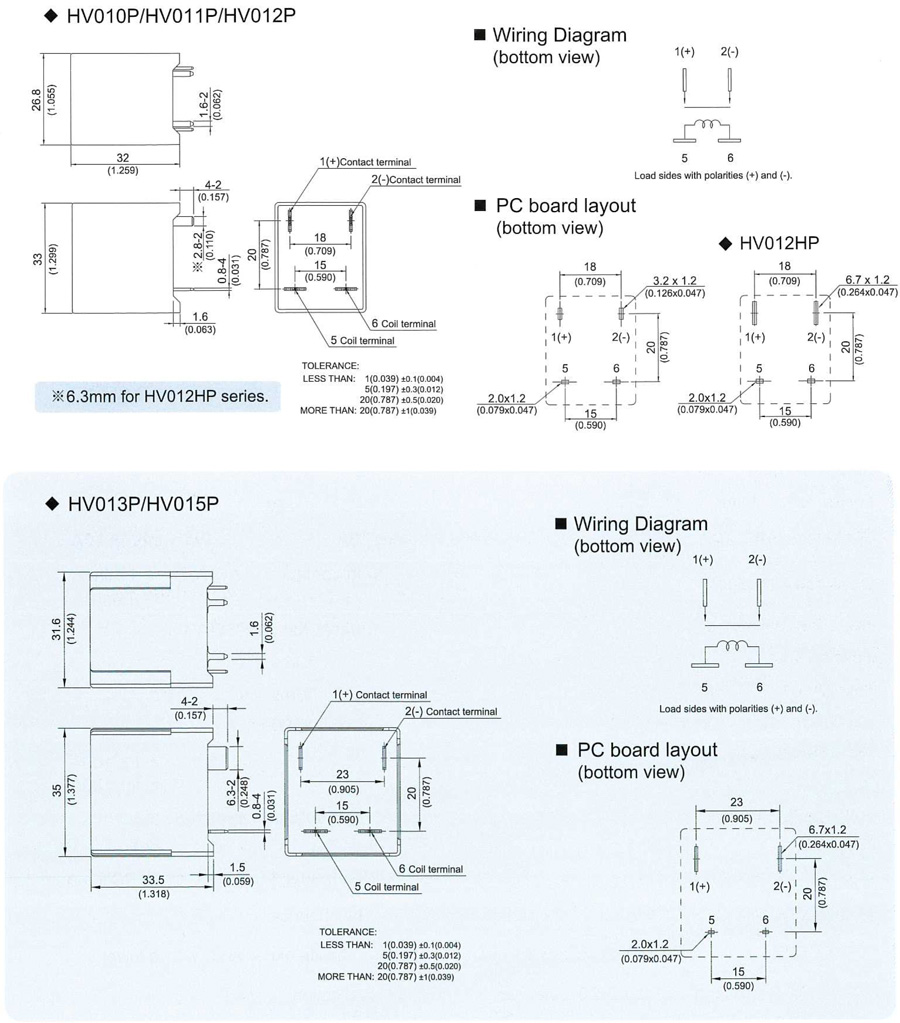

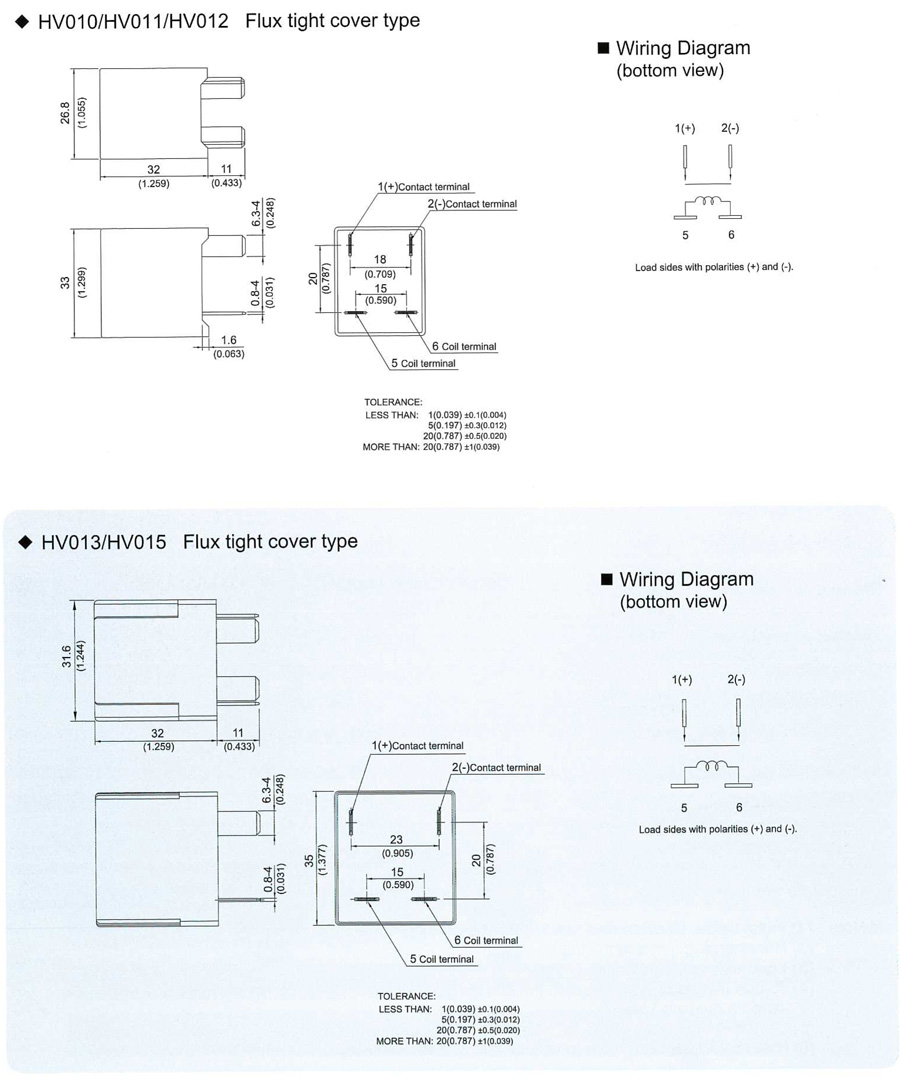

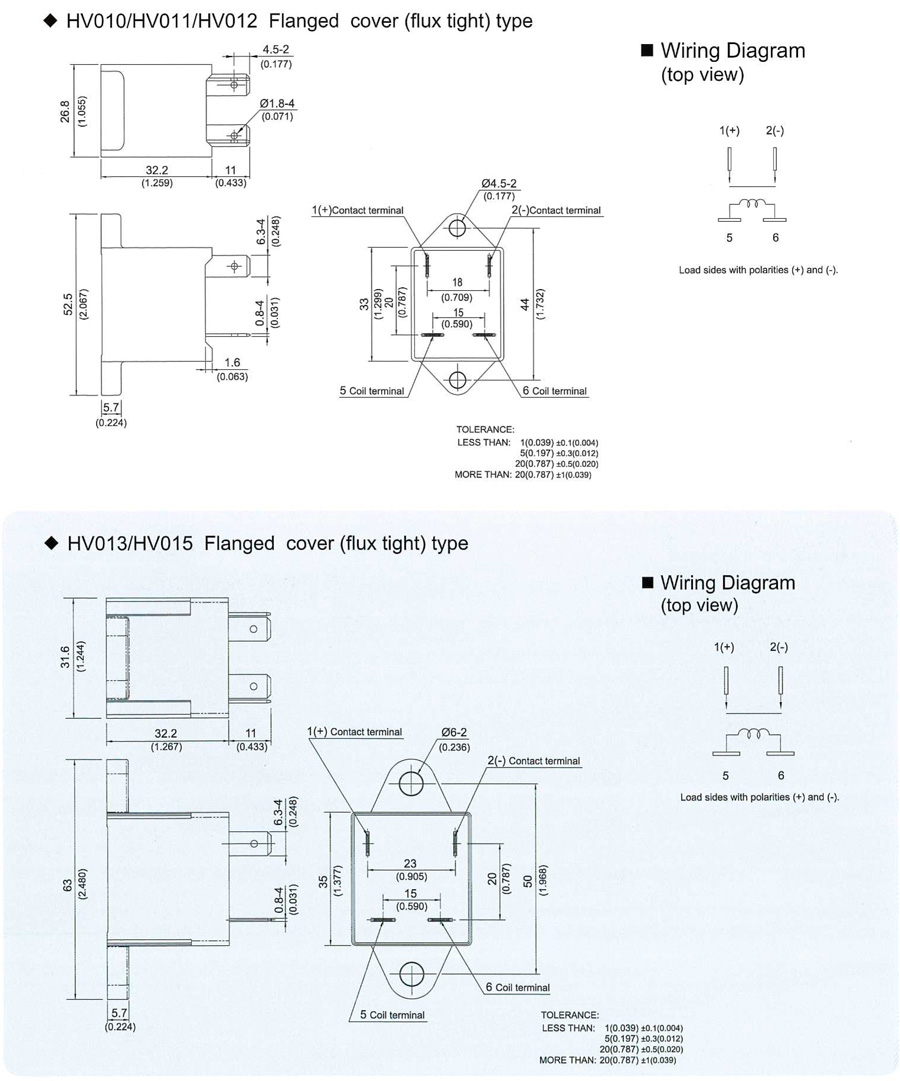

outline dimensions

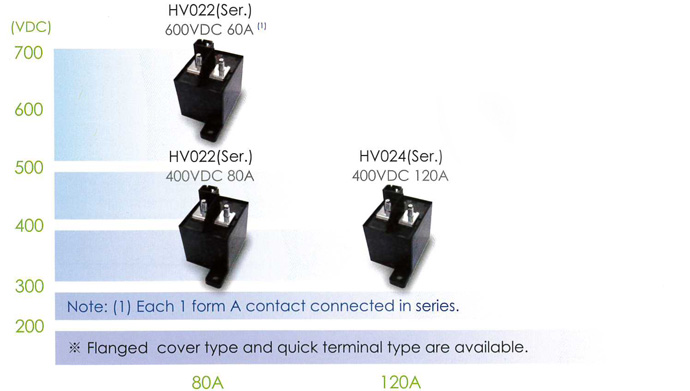

HV02 Series

DESCRIPTION
Relay type		HV022	HV024
Contact configuration		1A
Nominal switching capacity (resistive load)		6A 400VDC 80A 400VDC	100A 400VDC 120A 400VDC
Rated voltage		12VDC
Pick up voltage (Max.)		9.0V
Drop out voltage (Min.)		0.6V
Power consumption		5W
Contact voltage drop ⁽¹⁾		Typ. 10mV at 10A	Typ. 10mV at 10A
Breakdown voltage ⁽¹⁾		Between open contact : AC 2000V / 1 min. Between contact and coil : AC 4000V / 1 min.
Insulation resistance ⁽¹⁾		100MΩ Min.(DC500V)
Operate time ⁽¹⁾		30ms Max.
Release time ⁽¹⁾		30ms Max.
Life expectancy	Mechanical (Min.)	500,000 ops.
Life expectancy	Electrical (Min.)	2,000 ops. for 60A 1,000 ops. for 80A	500 ops. for 100A 100 ops. for 120A
Ambient temperature		-40 ～ 85℃(no freezing)
Weight		Approx. 180g,185g(flanged cover)
Terminal connection		Screw terminal; Quick terminal; Plug-in terminal; PCB terminal

※ Note:(1) Initial value. Operate and release time excluding contact bounce.
　　　　(2) Load sides with polarities (+) and (-).
　　　　(3) To use a varistor could absorb the coil surge of relay. The life expectancy will be lower
　　　　　　when a diode is used.
　　　　(4) Consider the heat of PCB is necessary with actual application.
　　　　(5) Please contact Song Chuan for the detailed information.

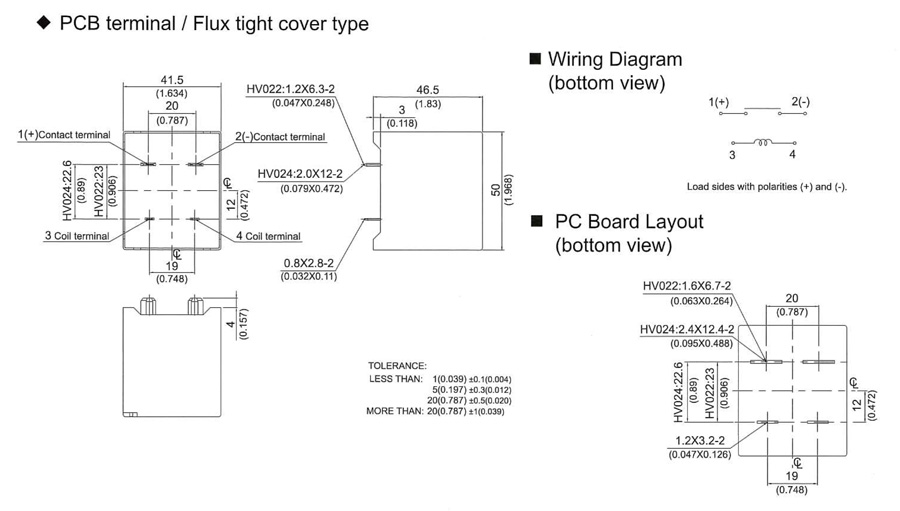

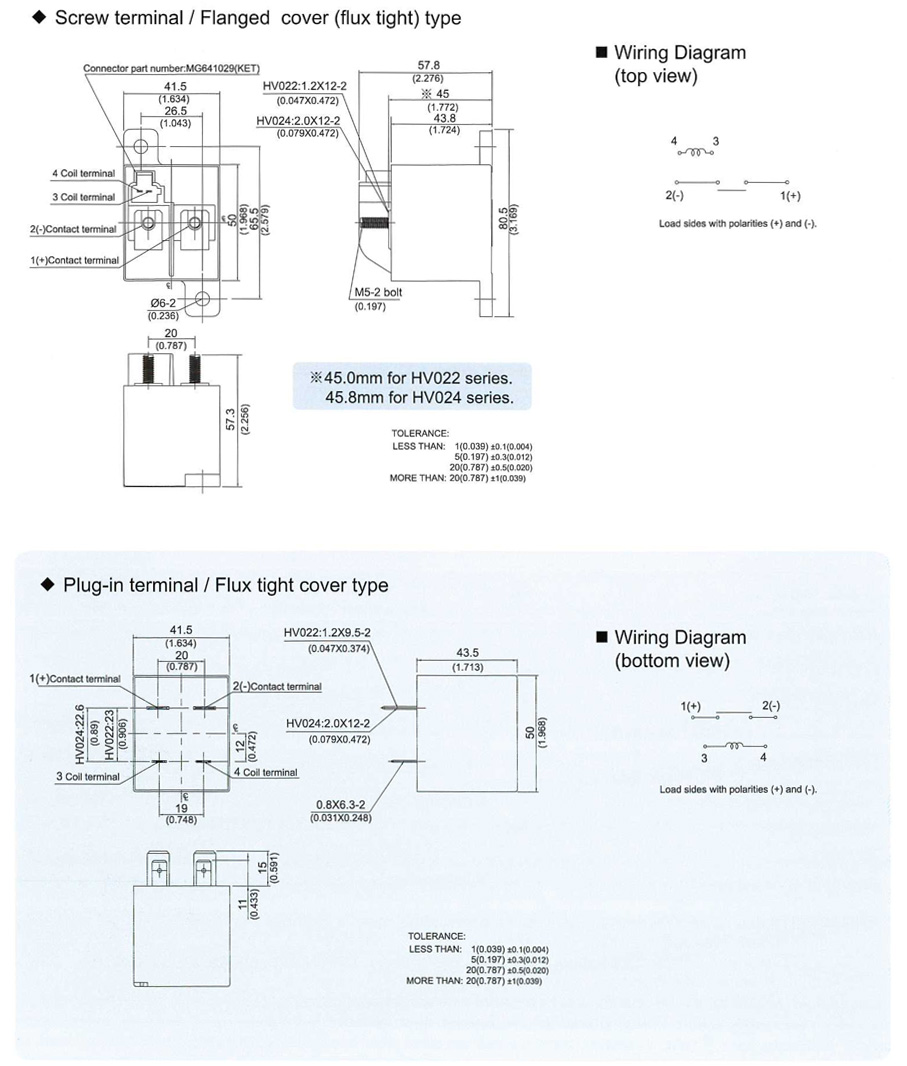

outline dimensions
